Ruijie Reyee RG-RAP2200E AC1300 Dual-Band Ceiling Mount Access Point — PoE, Reyee Cloud, Indoor WISP AP (Uganda)

Ruijie Reyee RG-RAP2200E — AC1300 Dual-Band Ceiling Mount Access Point for Hotels, Offices & WISP Indoor Deployments

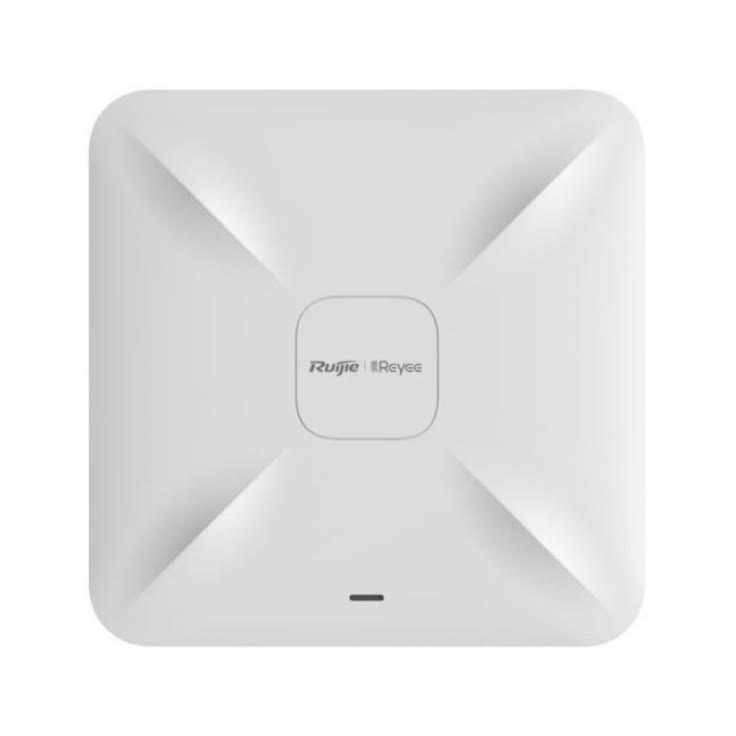

The Ruijie Reyee RG-RAP2200E is a professional-grade indoor ceiling-mount Wi-Fi access point delivering AC1300 dual-band wireless (400Mbps on 2.4GHz + 867Mbps on 5GHz) across a clean, flush-mount chassis designed to blend into any ceiling. PoE-powered and Reyee Cloud managed, it is the go-to indoor AP for WISPs deploying hotspots in hotels, schools, offices, and multi-tenant buildings across Uganda.

A single RG-RAP2200E covers a typical hotel floor or open-plan office, supporting up to 128 concurrent clients without degradation. Pair it upstream with the Ruijie Reyee RG-NBS3200 Layer 2 Managed Switch (which provides PoE on copper ports for AP power delivery) or the RG-NBS5200 Layer 3 Managed Switch for routed multi-VLAN WISP architectures.

For outdoor coverage to complement this indoor AP, see the MikroTik wAP ac Dual-Band Outdoor WiFi Access Point. For subscriber-end routing, pair with the Ruijie Reyee RG-EW1200G PRO Gigabit Router.

Key Specifications

• Model: RG-RAP2200E
• Wi-Fi Standard: IEEE 802.11a/b/g/n/ac (Wi-Fi 5 / AC1300)
• 2.4GHz Throughput: 400Mbps
• 5GHz Throughput: 867Mbps
• Combined Throughput: 1300Mbps
• Antennas: Internal omnidirectional antennas (2×2 MIMO on both bands)
• Max Clients: 128 simultaneous associations
• Uplink Port: 1 × Gigabit RJ45 (PoE-in, 802.3af/at)
• Power: PoE 802.3af/at (no separate adapter required)
• Management: Reyee Cloud, Web GUI, CLI (SSH/Telnet)
• Mounting: Ceiling flush-mount (bracket included)
• Coverage: Up to 200m² typical indoor coverage
• Colour: White
• Operating Temperature: 0°C to 40°C
• Security: WPA3 / WPA2 / WPA, 802.1X, MAC filtering
• VLAN: 802.1Q VLAN tagging per SSID

Why Choose a Ceiling AP for Your WISP Indoor Deployment?

Desktop routers create dead zones, visible cable clutter, and are easy for guests or tenants to unplug. A ceiling-mount AP like the RG-RAP2200E solves all three problems at once. Installed above head height and powered by a single PoE cable run through the ceiling, it delivers 360-degree omnidirectional coverage across the entire floor — no dead corners, no trailing power cables, no accidental reboots.

For WISP operators running hotspot networks in hotels, lodges, hospitals, or schools in Uganda, the RG-RAP2200E is a step-change in subscriber experience quality. Guests connect seamlessly, bandwidth is shared fairly across clients, and the Reyee Cloud dashboard gives your NOC team full visibility without on-site visits.

Manage subscriber sessions, time-based vouchers, bandwidth quotas, and mobile money billing across all your indoor hotspot sites through our ISP Billing & Management Platform — purpose-built for East African WISP operators.

Ruijie Reyee Indoor AP vs Outdoor AP — Which to Choose?

Recommended Complementary Products

• Ruijie Reyee RG-NBS3200 Layer 2 Managed Switch — PoE switch for powering and aggregating ceiling APs
• Ruijie Reyee RG-NBS5200 Layer 3 Managed Switch — core switch with inter-VLAN routing for multi-site deployments
• Ruijie Reyee RG-EW1200G PRO 1300Mbps Gigabit Router — subscriber-end CPE router
• Ruijie Reyee RG-EW1200 1200Mbps Dual-Band Router — entry-level subscriber CPE
• MikroTik ISP Starter Kit — 4-Device Bundle (Uganda) — complete WISP core infrastructure
• MikroTik wAP ac Dual-Band Outdoor WiFi Access Point — outdoor distribution AP complement
• Cat6 LAN Cable 20m — Pre-Terminated RJ45 Ethernet Patch Cable — ceiling cable runs for PoE AP installation

ISP Billing & Hotspot Management

Running a hotel Wi-Fi, campus hotspot, or WISP indoor network in Uganda? Our ISP Billing & Management Platform integrates with Reyee Cloud and MikroTik RouterOS to deliver voucher-based hotspot billing, bandwidth quotas, mobile money payment collection, and subscriber session reporting — all from a single dashboard. Opens in a new tab.
