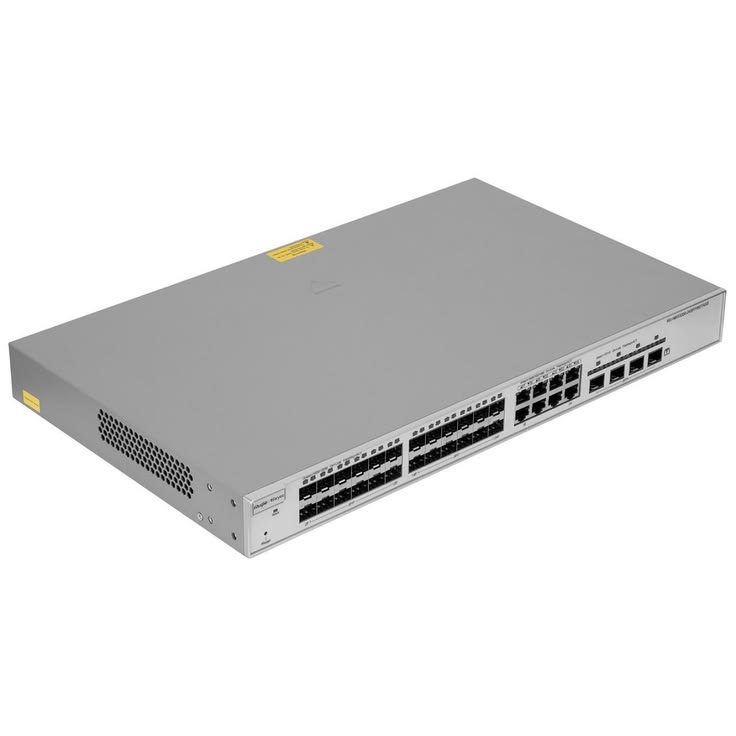

Ruijie Reyee RG-NBS5200-24SFP/8GT4XS Layer 3 Managed Switch — 24×SFP + 8×GE + 4×10G Uplink

Ruijie Reyee RG-NBS5200-24SFP/8GT4XS — Layer 3 Managed Switch for ISP Core & WISP Distribution

The Ruijie Reyee RG-NBS5200-24SFP/8GT4XS is a carrier-grade, rack-mountable Layer 3 Managed Switch built for ISPs, WISPs, and enterprise network operators who need full IP routing at the aggregation or core layer. With 24 SFP Gigabit fiber ports, 8 Gigabit copper (GE) RJ45 ports, and 4×10G SFP+ uplink slots, this 1U switch delivers the routing intelligence and port density to serve as the backbone of a modern WISP distribution network — without needing a separate router.

Whether you are scaling from 50 to 500 subscribers across multiple towers in Uganda, the RG-NBS5200 handles inter-VLAN routing, OSPF dynamic routing, and policy-based traffic control at wire speed. Pair it with our Ruijie Reyee RG-NBS3200 Layer 2 Managed Switch at the access layer for a clean two-tier ISP architecture, or deploy it alongside the MikroTik ISP Starter Kit for a full-stack WISP solution.

Key Specifications

• Model: RG-NBS5200-24SFP/8GT4XS
• Switch Type: Layer 3 Managed Switch
• SFP Ports: 24 × 1G SFP (fiber)
• Copper Ports: 8 × 10/100/1000Mbps RJ45 (GE)
• Uplink Ports: 4 × 10G SFP+ slots
• Switching Capacity: 128 Gbps
• Forwarding Rate: 95.2 Mpps
• MAC Address Table: 32K
• Layer 3 Routing: Static routing, OSPF, inter-VLAN routing
• VLAN Support: IEEE 802.1Q, Port VLAN, Voice VLAN, GVRP
• Spanning Tree: STP / RSTP / MSTP
• Link Aggregation: LACP (IEEE 802.3ad), up to 8 ports per group
• QoS: 802.1p / DSCP, 8 queues per port
• ACL: L2/L3/L4 ACL for traffic policy and security
• Management: Web GUI, CLI (SSH/Telnet), SNMP v1/v2c/v3, Reyee Cloud
• Form Factor: 1U Rack-Mountable (19-inch)
• Power Supply: Redundant PSU support
• Operating Temperature: 0°C to 45°C

Why Layer 3 Matters for Your ISP

Running a WISP in Uganda means managing dozens of customer VLANs, tower uplinks, and management subnets — all fighting for the same backbone. A Layer 2 switch forces you to route traffic back to a separate router for every inter-VLAN hop, creating bottlenecks and single points of failure. The RG-NBS5200 eliminates that constraint by routing directly at the switch level, keeping latency low and your network topology clean.

With OSPF support, the NBS5200 can dynamically exchange routes with your MikroTik border routers, automatically rerouting traffic if a link goes down — no manual reconfiguration required. This is the kind of resilience that separates a professional ISP from a hobbyist network.

Manage subscriber billing, bandwidth control, and provisioning through our ISP Billing & Management Platform — purpose-built for East African WISP operators and fully compatible with Ruijie and MikroTik infrastructure.

Local Pricing Comparison — Uganda

Prices are indicative and subject to change. Contact us for bulk or project pricing.

Recommended Complementary Products

• Ruijie Reyee RG-NBS3200 Layer 2 Managed Switch — access layer partner switch
• Ruijie Reyee RG-EW1200 1200Mbps Dual-Band Wi-Fi Router — last-mile CPE for subscribers
• MikroTik ISP Starter Kit — 4-Device Bundle (Uganda) — complete WISP launch kit
• MikroTik wAP ac Dual-Band Outdoor WiFi Access Point — tower or CPE outdoor AP
• Cat6 LAN Cable 20m — Pre-Terminated RJ45 Patch Cable — rack patch cabling

ISP Billing & Network Management

Running a WISP or ISP in Uganda? Our ISP Billing & Management Platform integrates with MikroTik RouterOS and Ruijie network equipment to automate subscriber provisioning, bandwidth shaping, invoicing, and mobile money collection — built for East African operators. Click to explore plans and features.
