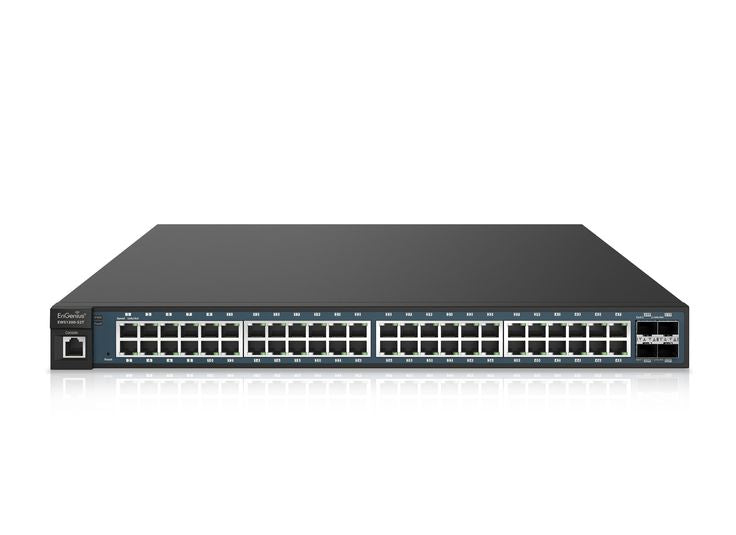

EnGenius Neutron EWS7952FP 48-Port Gigabit PoE+ Managed Smart Switch with 4x SFP Uplinks

EnGenius Neutron EWS7952FP — 48-Port Gigabit PoE+ Managed Smart Switch for ISP & Enterprise Networks

The EnGenius Neutron EWS7952FP is a high-density 48-Port Gigabit PoE+ Managed Smart Switch engineered for ISPs, WISPs, hotel networks, campus deployments, and enterprise IT teams across Uganda and East Africa. Combining 48 IEEE 802.3at PoE+ ports with 4x Gigabit SFP uplink ports, this 1U rackmount switch delivers the power and intelligence needed to run large-scale wireless deployments, IP surveillance systems, and VoIP infrastructure — all from a single managed platform.

Managed through EnGenius Cloud or local Web GUI, the EWS7952FP gives your network team full visibility and control over every connected device — without the complexity of CLI-only enterprise switches. Whether you are aggregating 40+ wireless access points in a hotel or powering a campus-wide IP camera system, this switch delivers the PoE budget, port density, and Layer 2 intelligence to do it cleanly.

Key Features

• 48x Gigabit PoE+ ports (802.3at) — up to 30W per port, 375W total PoE budget
• 4x Gigabit SFP uplink ports — fiber or copper uplinks to your core switch or router
• EnGenius Cloud management — zero-touch provisioning, remote monitoring, and firmware updates
• Layer 2+ managed — VLAN, QoS, RSTP, IGMP Snooping, Link Aggregation (LACP), Port Mirroring
• 96 Gbps switching fabric — non-blocking line-rate performance across all 52 ports
• 1U rackmount design — standard 19-inch rack with included mounting kit
• EnGenius ezMaster compatible — on-premises network management for enterprise deployments
• SNMP v1/v2c/v3, RMON — compatible with NMS platforms and ISP monitoring stacks

Technical Specifications

• Model: EWS7952FP
• Series: Neutron
• PoE Ports: 48x Gigabit IEEE 802.3at PoE+ (up to 30W per port)
• Uplink Ports: 4x Gigabit SFP
• Total PoE Budget: 375W
• Switching Capacity: 96 Gbps
• Forwarding Rate: 71.4 Mpps
• MAC Address Table: 16K entries
• Jumbo Frame: 9K bytes
• Management: Web GUI, EnGenius Cloud, ezMaster, SNMP, CLI (SSH/Telnet)
• VLAN: IEEE 802.1Q, up to 4094 VLAN IDs
• QoS: 802.1p, DSCP, 4 queues per port
• Power Input: AC 100–240V, 50/60Hz
• Max Power Consumption: 480W (PoE fully loaded)
• Form Factor: 1U Rackmount
• Dimensions: 440 x 370 x 44 mm
• Operating Temp: 0°C to 50°C
• SKU: ENG-EWS7952FP-48G-SFP

Ideal Use Cases for Uganda & East Africa Networks

The EWS7952FP is the switch of choice when you need high port density, PoE power delivery, and cloud-managed simplicity in one chassis:

• Hotel & hospitality networks — power and manage 40+ in-room access points from a single switch, with per-VLAN guest isolation
• IP surveillance systems — deliver 30W PoE+ to PTZ cameras across an entire building floor without separate power injectors
• Campus wireless deployments — aggregate EnGenius or third-party APs with per-port QoS to prioritise voice and video traffic
• ISP distribution layer — connect CPE devices and subscriber edge equipment with SFP fiber uplinks to your core
• VoIP office deployments — power 48 IP phones with 802.3at and apply DSCP QoS policies to guarantee call quality

ISP Billing & Subscriber Management Integration

Running an ISP or WISP in Uganda? The EWS7952FP integrates cleanly into managed ISP network architectures. Pair it with a RADIUS-aware edge router and connect your subscriber management to a purpose-built ISP billing platform that handles PPPoE sessions, bandwidth policies, invoicing, and real-time usage reporting:

Explore Our ISP Billing & Subscriber Management System

Our billing system is designed for Ugandan and East African ISPs — with MikroTik RADIUS integration, automated invoicing, and captive portal support built in.

Complete Your Network with These Products

The EWS7952FP performs best as part of a structured network architecture. Build a complete, ISP-grade stack with these products from NetEdge Supplies Uganda:

• Ruijie Reyee RG-NBS3200 Layer 2 Managed Switch — 24x SFP — fibre-facing distribution layer switch for upstream aggregation
• Ruijie Reyee RG-NBS5200 Layer 3 Managed Switch — 24x SFP — Layer 3 core switch with routing for multi-VLAN segmentation
• MikroTik CRS310-8G+2S+IN 2.5G/10G Cloud Router Switch — 2.5G aggregation switch with 10G SFP+ uplinks
• MikroTik hEX S RB760iGS Gigabit Router with SFP & PoE — edge router for PPPoE, firewall, and subscriber gateway
• MikroTik ISP Starter Kit — 4-Device Bundle (Uganda) — complete WISP starter bundle for new ISP deployments
• Vention Cat6 Patch Cable — RJ45 LAN Network Cable — high-quality patch cables for every port on this switch
• LINK Cat6 UTP Bulk Cable 1000ft Pull Box — structured cabling for permanent runs to APs and cameras

What's in the Box

• 1x EnGenius EWS7952FP 48-Port PoE+ Managed Switch
• 1x AC Power Cable
• 1x Rack-mount Kit (ears and screws)
• 1x Quick Installation Guide

Warranty & Local Support

This switch comes with a limited hardware warranty backed by EnGenius. NetEdge Supplies provides local pre-sales and post-sales support in Uganda, including VLAN configuration guidance, PoE budget planning, and cloud onboarding assistance. Contact our network team for a deployment consultation.

Frequently Asked Questions

Q: What is the total PoE budget of the EWS7952FP?

375W total, shared across 48 PoE+ ports at up to 30W per port (IEEE 802.3at). Plan your PoE budget carefully for fully loaded deployments.

Q: Can it be managed from the cloud?

Yes — via EnGenius Cloud for zero-touch remote management, or ezMaster for on-premises control. Both support VLAN, QoS, port configuration, and firmware updates.

Q: Is this switch suitable for ISP subscriber distribution?

Yes. Pair it with a RADIUS-capable router such as the MikroTik hEX S and our ISP billing platform for a complete subscriber management stack.

Q: Does it support VLANs?

Yes — IEEE 802.1Q with up to 4094 VLAN IDs. Segment guest Wi-Fi, cameras, VoIP, and management traffic on separate logical networks within the same switch.

Q: Is it available in Uganda?

Yes. NetEdge Supplies stocks it in Uganda at UGX 725,000. Delivery available to Kampala, Entebbe, Jinja, Mbarara, and Gulu. Bulk ISP pricing on request.

Q: What SFP modules work with the uplink ports?

Standard 1G SFP modules — SMF, MMF, or 1000BASE-T copper. EnGenius-branded modules recommended for guaranteed compatibility.
