IP cameras are the modern standard for CCTV security systems — delivering higher resolution, remote viewing, and easier installation compared to traditional analogue cameras. And unlike analogue CCTV systems that require coaxial cable, IP cameras use standard Cat6 Ethernet cable for both data and power. This guide walks you through everything you need to plan and cable a professional IP camera network in Uganda — from camera placement to NVR setup. For background on PoE switch selection to power your cameras, see our guide on PoE vs Non-PoE Switches for ISP and Office Networks in Uganda. And for ISPs providing the internet connectivity that enables remote camera viewing, visit our ISP Billing Systems site to manage your subscribers.
Why IP Cameras and Cat6 Cable Are the Modern CCTV Standard
Traditional analogue CCTV systems use coaxial cable and DVRs. They are being rapidly replaced by IP camera systems for good reason:
- Higher resolution: IP cameras offer 2MP, 4MP, 8MP (4K), and higher resolutions — far beyond what analogue systems can deliver
- Single cable installation: One Cat6 cable per camera carries both video data and PoE power — no separate power cable needed
- Remote viewing: IP cameras connect to your network and can be viewed remotely over the internet from anywhere in the world
- Scalability: Adding cameras to an IP system is as simple as running another Cat6 cable and connecting to a PoE switch port
- Integration: IP cameras integrate with access control, alarm systems, and smart building management platforms
For ISPs providing remote camera viewing capability to subscribers, our ISP Billing Systems keeps your subscriber and billing management just as sharp as your camera footage.
Step 1: Plan Your Camera Positions
Before pulling a single cable, map out your camera positions on a floor plan or site map. Good camera placement covers all entry and exit points, high-value areas, and vulnerable zones with minimal blind spots.
Key placement considerations for Uganda:
- Entry and exit points: Gates, doors, driveways — always cover these first
- Perimeter: Fence lines, walls, and compound boundaries for properties with outdoor areas
- Parking areas: Wide-angle cameras to cover vehicle movement
- Internal high-value areas: Server rooms, cash handling areas, storerooms
- Camera height: Mount cameras at 2.5–3.5 metres for the best field of view and to deter tampering
For each camera position, measure the cable run distance from the camera to your NVR/PoE switch location. Keep all runs under 100 metres for reliable Cat6 performance. For ISPs securing their NOC with IP cameras, manage your subscriber network alongside your security infrastructure using our ISP Billing Systems.
Step 2: Choose the Right Cat6 Cable for Indoor and Outdoor Cameras
Cable selection is critical for IP camera installations — especially in Uganda's climate:
- Indoor cameras: The Cmple Cat6 1000ft 23AWG 550MHz Bulk Reel for wall and ceiling runs, and Vention Cat6 Multi-Colour Patch Cables for short patch connections at the switch. Route through conduit or cable trunking for a clean, protected installation.

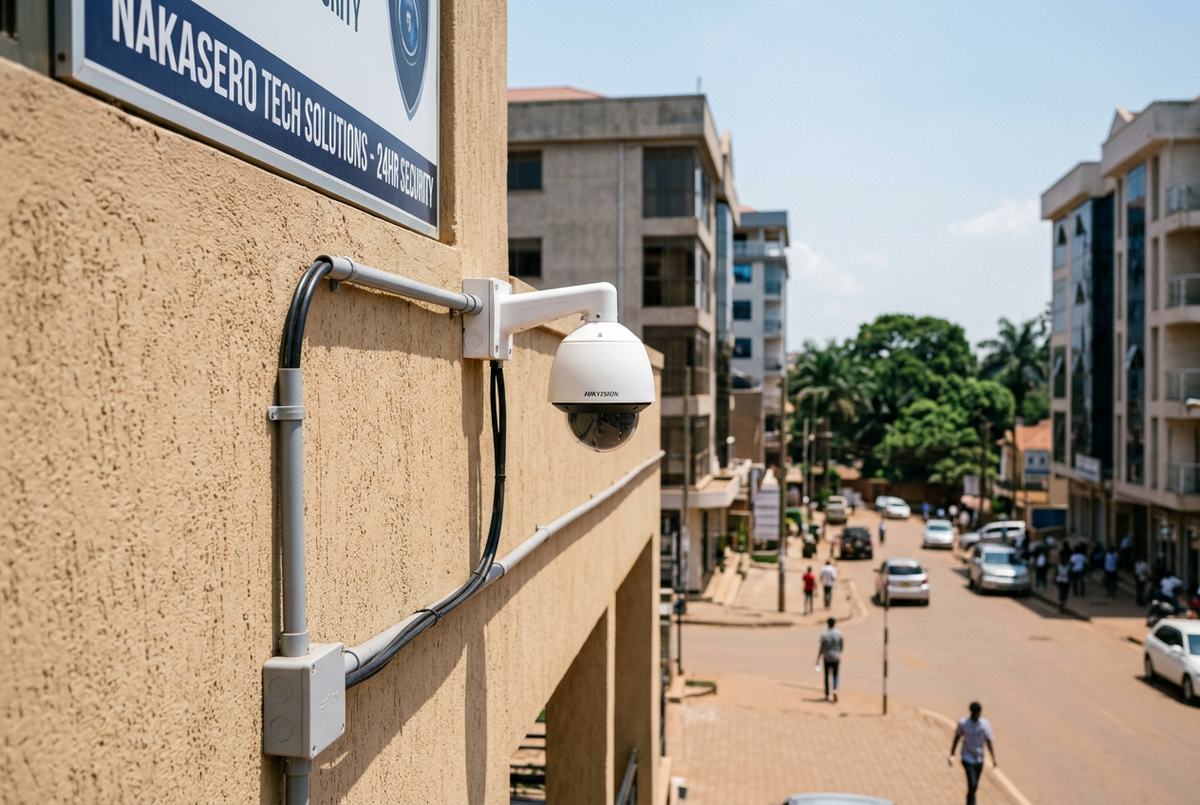

- Outdoor cameras: The Cat6 Outdoor 250ft UV-Resistant Cable is essential. Uganda's sun, rain, and humidity will degrade standard indoor cable within months, causing intermittent connections and complete camera failure. For runs transitioning from outside to inside, the Dutevolns Cat6 Indoor/Outdoor ETL-Verified Cable is an excellent choice.
- Long runs (50–100 metres): Use the Cmple Cat6 1000ft Bulk Reel with solid 23AWG copper conductors to minimise resistance and ensure reliable PoE power delivery at distance.
- Buried runs: Use direct-burial rated outdoor Cat6 cable with additional conduit protection for runs through soil or concrete.
Step 3: Select and Size Your PoE Switch
Most IP cameras are powered via PoE, so your PoE switch selection is critical. Key factors:
- Number of ports: One PoE port per camera, plus spare ports for future expansion
- PoE standard: Standard PoE (802.3af, up to 15.4W) covers most IP cameras. PTZ cameras and high-power models may require PoE+ (802.3at, up to 30W)
- Total PoE budget: Calculate the total wattage of all cameras (e.g. 16 cameras × 10W = 160W) and add 20% headroom. Select a switch whose PoE budget exceeds this figure.
- Uplink ports: Ensure the switch has a gigabit uplink to your NVR for handling multiple simultaneous HD video streams
For a full guide on PoE standards, power budgeting, and switch selection, see our guide on PoE vs Non-PoE Switches. Connect all cameras to the PoE switch using Cat6 patch cables from NetEdge Supplies. For ISPs using PoE switches in their distribution points, track every subscriber connected through those switches with our ISP Billing Systems.
Step 4: Place Your NVR Centrally
The NVR (Network Video Recorder) is the brain of your IP camera system. It receives video streams from all cameras over the network, records footage, and provides remote viewing access. Place your NVR:
- In a secure, locked room or cabinet — see our guide on How to Set Up a Professional Network Rack for best practices on housing your NVR and switch securely
- Close to your PoE switch to minimise cable runs between the NVR and switch
- Connected to a UPS — power outages are common in Uganda and an NVR without UPS backup will lose footage during outages
- Connected to the internet via your ISP link for remote viewing — ensure your ISP provides a static IP or use DDNS for reliable remote access
For ISPs providing the internet connectivity that enables remote NVR access for clients, our ISP Billing Systems manages every subscriber account delivering that connectivity.
Step 5: Run, Terminate, and Test Every Cable
With your camera positions planned, cable types selected, and NVR location chosen, it's time to install:
- Run all Cat6 cables through conduit, trunking, or cable clips — never leave cables exposed and unsupported
- For outdoor runs, seal all cable entry points into buildings with weatherproof gland fittings or silicone sealant to prevent water ingress
- Terminate each cable with an RJ45 connector or punch it down to a patch panel port, following TIA/EIA 568-B wiring standard throughout
- Label every cable at both ends with the camera identifier (e.g. CAM-01, CAM-02)
- Test every cable with a cable tester before connecting cameras — a wiring fault discovered after cameras are mounted is expensive to fix
Connect cameras to the PoE switch using Vention Cat6 Multi-Colour Patch Cables from NetEdge Supplies — colour-coding your camera connections (e.g. purple for CCTV) makes the rack instantly readable. For ISPs securing their infrastructure with IP cameras, document every camera installation alongside subscriber records in our ISP Billing Systems.
Step 6: Configure Remote Viewing
One of the biggest advantages of an IP camera system is the ability to view live and recorded footage from anywhere via smartphone or computer. To enable remote viewing from Uganda or internationally:
- Ensure your NVR is connected to the internet via a reliable ISP link
- Request a static IP from your ISP — or configure DDNS (Dynamic DNS) if a static IP is not available
- Forward the necessary ports on your router to your NVR's local IP address
- Install the NVR manufacturer's mobile app and connect using your static IP or DDNS address
For ISPs providing the connectivity that makes remote camera viewing possible, our ISP Billing Systems keeps your subscriber accounts, plans, and billing perfectly managed.
Final Thoughts
IP cameras with Cat6 cabling are the modern, scalable, and cost-effective standard for CCTV in Uganda — delivering dramatically better image quality, simpler installation, and remote viewing capability compared to old analogue systems. The key to a reliable installation is using the right cable type for indoor and outdoor runs, sizing your PoE switch correctly, and labelling and testing everything before you finish.
Browse our complete range of Cat6 cables at NetEdge Supplies — the Cmple Cat6 1000ft Bulk Reel for indoor structured runs, the Cat6 Outdoor 250ft UV-Resistant Cable for outdoor camera runs, the Dutevolns Cat6 Indoor/Outdoor Cable for transition runs, and the Vention Cat6 Multi-Colour Patch Cables for organised switch connections — all with delivery across Uganda and East Africa. And for ISPs providing the connectivity that powers remote camera viewing, manage every subscriber with our ISP Billing Systems.
Frequently Asked Questions (FAQ)
Q: What cable do I need for IP cameras in Uganda?
A: Use the Cmple Cat6 1000ft Bulk Reel for interior camera runs and the Cat6 Outdoor 250ft UV-Resistant Cable for exterior cameras. Never use indoor cable outdoors — Uganda’s climate will degrade it quickly. Shop both at NetEdge Supplies. For ISPs supporting camera connectivity, visit our ISP Billing Systems.
Q: Do IP cameras need PoE?
A: Most modern IP cameras support PoE, receiving both data and power through a single Cat6 cable from a PoE switch. This eliminates separate power supplies at each camera. See our guide on PoE vs Non-PoE Switches for full details. For ISPs powering network equipment via PoE, manage subscribers with our ISP Billing Systems.
Q: How far can I run Cat6 cable to an IP camera?
A: Maximum 100 metres (328 feet) for reliable Gigabit and PoE performance. For cameras beyond 100m, install a PoE extender or intermediate switch. Use the Cmple Cat6 1000ft Bulk Reel from NetEdge Supplies for long runs. For ISPs managing remote infrastructure, visit our ISP Billing Systems.
Q: What is the difference between an NVR and a DVR for CCTV?
A: An NVR works with IP cameras via Cat6 Ethernet cable and handles digital video. A DVR works with analogue cameras via coaxial cable. For new installations, IP cameras + NVR + Cat6 is the superior modern standard. Manage the ISP connectivity enabling remote NVR access with our ISP Billing Systems.
Q: How many IP cameras can I connect to one PoE switch?
A: It depends on the switch’s port count and total PoE budget. A typical camera draws 7–15W. Calculate your total camera wattage, add 20% headroom, and select a switch that meets it. Connect cameras with Cat6 patch cables from NetEdge Supplies, and manage ISP subscribers with our ISP Billing Systems.
