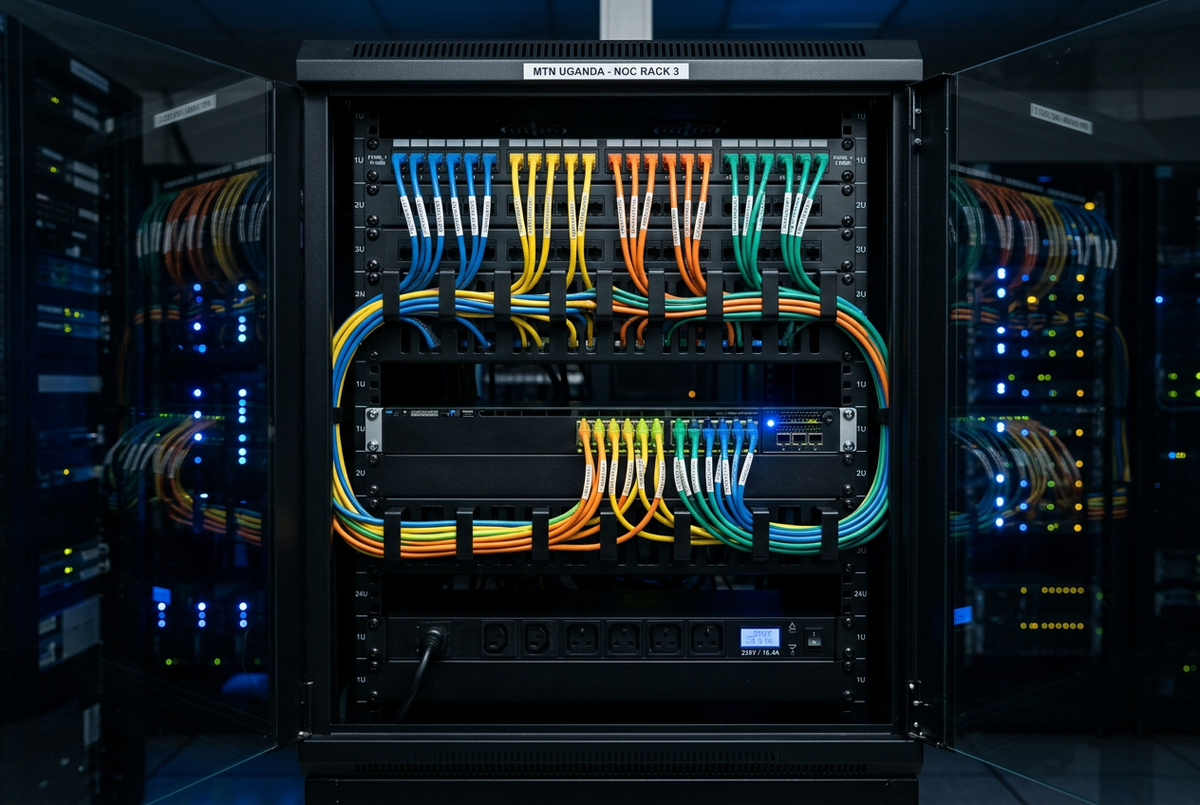

A well-organised network rack is the heart of any professional office network or ISP network operation centre (NOC). It houses your patch panel, switches, routers, UPS, and servers in a clean, structured, and easily manageable format. Whether you're setting up your first rack or reorganising a messy one, this guide will walk you through everything you need to build a professional rack from scratch in Uganda. For a broader foundation on structured cabling before the rack, see our Structured Cabling 101 guide for Ugandan SMEs and Offices, and for choosing the right cables for each segment, see How to Choose the Right Cat6 Cable for Your ISP Network. And for ISPs managing subscribers connected through that rack, visit our ISP Billing Systems site for complete subscriber and billing management.
Step 1: Choose the Right Rack Size
Network racks are measured in rack units (U), where 1U = 44.45mm of vertical space. Choosing the right size from the start prevents the all-too-common problem of running out of rack space as your network grows.
- Small office (up to 24 users): A 9U–12U wall-mount rack is usually sufficient for a patch panel, small switch, router, and UPS
- Medium office (25–50 users): A 18U–24U floor-standing or wall-mount rack with room for two switches, a 24-port patch panel, and UPS
- ISP NOC or server room: A 42U floor-standing rack (or multiple racks) for core and distribution switches, multiple patch panels, routers, firewalls, servers, and UPS
Always buy one size larger than you think you need — your network will grow. ISPs especially should plan for growth: as your subscriber base expands, so does your rack equipment. Manage that growing subscriber base with our ISP Billing Systems platform.
Step 2: Plan Your Rack Layout Before Installing Anything
A good rack layout puts heavy equipment at the bottom (UPS, servers), active equipment in the middle (switches, routers), and patch panels at the top or organised by zone. Here is a recommended layout for a typical office or ISP NOC rack:
- Top: Patch panel(s) — where all Cat6 structured cabling runs terminate
- Below patch panel: Horizontal cable management panel
- Middle: Core switch(es) — connected to patch panel with short Cat6 patch cables
- Below switches: Router and firewall
- Above UPS: Servers or NAS (if applicable)
- Bottom: UPS — heaviest item, keeps the rack stable
Draw your planned layout on paper before installing any equipment. This prevents the frustration of having to remove and reinstall equipment to make room. For ISPs, plan your rack layout to accommodate future uplinks and redundant links — and plan your subscriber management with our ISP Billing Systems at the same time.
Step 3: Terminate Your Structured Cabling at the Patch Panel
The patch panel is where all your Cat6 horizontal cable runs from the office floor terminate. Each cable run punches down into a port on the patch panel, which is then connected to the switch via a short Cat6 patch cable. For a step-by-step guide on planning and executing a full structured cabling installation, see our Structured Cabling 101 guide.
Best practices for patch panel termination:
- Follow TIA/EIA 568-B wiring standard consistently throughout your network
- Label each patch panel port with the same identifier as the cable run and the wall port it connects to (e.g. F1-01)
- Leave a short service loop of cable behind the patch panel for future re-termination if needed
- Test every port with a cable tester before connecting switches
A clean, well-labelled patch panel is the difference between a network that's easy to manage and one that's a nightmare to troubleshoot. ISPs with well-documented physical networks can resolve subscriber faults faster — use our ISP Billing Systems to match physical port documentation with subscriber account records.
Step 4: Use Colour-Coded Patch Cables for Visual Organisation
One of the most effective and low-cost ways to keep your rack organised is colour-coded Cat6 patch cables. Assign a colour to each network segment and stick to it consistently:
- Blue: Standard LAN / data ports
- Red: WAN uplinks and critical links
- Yellow: Management network
- Green: VoIP phones
- Purple: IP cameras and CCTV
- Orange: Server connections
NetEdge Supplies stocks the Vention Cat6 Multi-Colour Patch Cables specifically for colour-coded rack management, and the Axiom Cat6 25ft 550MHz Red Patch Cable for WAN uplinks and critical NOC links. When a link goes down, colour-coding means you can identify the affected segment instantly — saving valuable troubleshooting time. For ISPs, combine colour-coded physical infrastructure with organised subscriber records in our ISP Billing Systems.
Step 5: Manage Your Patch Cables Neatly
The most common problem in network racks is cable mess — patch cables going everywhere, blocking airflow, making it impossible to trace a specific connection, and creating a hazard when equipment needs to be added or removed. Avoid this from day one:
- Use the right length patch cables: Measure the distance from the patch panel port to the switch port and use the shortest cable that reaches comfortably. The Vention Cat6 Multi-Colour Patch Cables are available in multiple lengths for precise rack cable management.
- Use horizontal cable management panels between the patch panel and switch to route cables neatly to the sides
- Use Velcro cable ties rather than zip ties — Velcro allows you to add or remove cables without cutting ties
- Label both ends of every patch cable with the port identifiers at each end
- Never pull patch cables tight — always leave a gentle curve to avoid strain on the RJ45 connectors
A neat rack is a fast rack to work in. ISPs with clean NOCs resolve faults faster and impress clients with professionalism. Pair your clean NOC with a clean subscriber management system — our ISP Billing Systems keeps your customer records just as organised as your patch cables.
Step 6: Install a UPS — Non-Negotiable in Uganda
Uganda's power grid, while improving, still experiences frequent fluctuations, surges, and outages. A UPS (Uninterruptible Power Supply) is not optional for any professional network rack in Uganda — it is essential. A UPS provides:
- Surge protection: Protects switches, routers, and servers from voltage spikes that can cause instant hardware failure
- Runtime during outages: Keeps your network running during short outages and provides time for graceful generator switchover
- Clean power: Conditions incoming power to remove noise that can cause subtle hardware degradation over time
For ISPs, a few minutes of downtime during a power outage affects every subscriber on your network simultaneously — and generates a flood of support calls. A UPS minimises this. Combine hardware uptime with billing uptime using our ISP Billing Systems for uninterrupted subscriber management.
Step 7: Document Everything
The final and most overlooked step in rack setup is documentation. Create and maintain:
- A rack diagram showing what equipment is in each U position
- A port mapping document showing which patch panel port connects to which wall port, which switch port, and which device
- A cable log showing the colour, length, and purpose of every patch cable in the rack
Store this documentation digitally and keep it updated whenever changes are made. For ISPs, link your physical port documentation to subscriber account records in our ISP Billing Systems — so when a subscriber reports a fault, you can identify their physical port instantly.
Final Thoughts
A professional network rack is not just about aesthetics — it directly impacts your network's reliability, your team's ability to troubleshoot quickly, and your capacity to scale. Invest the time to plan, label, and document your rack from the start, and it will pay dividends for years. For ISPs building out last-mile infrastructure to feed into this rack, see our guide on How to Build a Reliable Last-Mile ISP Network on a Budget in Uganda.
Shop our full range of Cat6 patch cables at NetEdge Supplies — including the Vention Cat6 Multi-Colour Patch Cables, the Axiom Cat6 25ft Red Patch Cable for critical links, and the Cmple Cat6 1000ft Bulk Reel for your structured cabling runs. And for ISPs, complete your professional setup with our ISP Billing Systems — the subscriber and billing management platform built for Ugandan and East African ISPs.
Frequently Asked Questions (FAQ)
Q: What size network rack do I need for a small office or ISP NOC in Uganda?
A: For a small office with up to 24 network points, a 9U–12U wall-mount rack is usually sufficient. For an ISP NOC or server room, a 24U or 42U floor-standing rack is recommended. Always size up for future growth — and plan your subscriber growth with our ISP Billing Systems.
Q: What goes in a network rack?
A: A network rack typically contains a patch panel (where Cat6 structured cabling runs terminate), a core switch, router or firewall, UPS, and optionally servers or NAS. Cat6 patch cables connect the patch panel to the switch. Manage every subscriber connected through that rack with our ISP Billing Systems.
Q: What type of patch cables should I use in a network rack?
A: Use short Cat6 patch cables (0.5m–2m) for rack connections. The Vention Cat6 Multi-Colour Patch Cables are strongly recommended to visually distinguish data, management, VoIP, and WAN segments, and the Axiom Cat6 25ft Red Patch Cable for critical WAN uplinks. Shop the full range at NetEdge Supplies and manage your ISP network with our ISP Billing Systems.
Q: How should I organise cables in a network rack?
A: Use cable management panels, Velcro ties, the correct length Cat6 patch cables, and consistent labelling. Group cables by function and colour. Leave gentle curves — never pull cables tight. Keep your subscriber organisation equally clean with our ISP Billing Systems.
Q: Do I need a UPS in my network rack?
A: Absolutely — especially in Uganda. A UPS protects against power surges, provides runtime during outages, and delivers clean power to your equipment. For ISPs, it minimises subscriber downtime during outages. Combine hardware uptime with billing uptime via our ISP Billing Systems.
