Hotels, apartment blocks, student hostels, shopping malls, and campuses across Uganda are increasingly offering paid or managed Wi-Fi to their guests, tenants, and students. A professional hotspot billing system lets you control who accesses your Wi-Fi, how much bandwidth they get, and how long their session lasts — while giving you a revenue stream or at least recovering your internet costs. This guide walks you through everything you need to plan and deploy a hotspot billing system in Uganda. For comprehensive subscriber and billing management beyond the hotspot portal, visit our ISP Billing Systems platform.
How a Hotspot Billing System Works
A hotspot billing system sits between your internet connection and your Wi-Fi users. When a guest or tenant connects to your Wi-Fi network and opens a browser, they are redirected to a captive portal — a login page — before they can access the internet. On this page they enter a voucher code, username and password, or make a payment. Once authenticated, the system grants them internet access according to their profile — with defined bandwidth limits, session time limits, and data quotas.
When their session expires or their data quota is exhausted, access is automatically cut and they are redirected back to the captive portal to purchase more time or data. The whole process is automated, requires no manual intervention, and generates detailed usage logs for billing and reporting. For ISPs operating hotspot networks at multiple sites, our ISP Billing Systems platform ties your subscriber management and billing together across all locations.
Step 1: Plan Your Wi-Fi Coverage
Before touching any equipment, map out every area that needs Wi-Fi coverage. For a hotel, this typically means every guest room, corridor, reception, restaurant, and conference room. For an apartment block, it means every flat, common area, and parking level. For a campus, it means every lecture hall, library, student centre, and hostel block.
For each coverage zone, plan:
- The number and position of wireless access points — one per 40–60 square metres in a typical Ugandan concrete building. See our MikroTik mAP 2nD Wireless Access Point for indoor coverage and the MikroTik wAP ac Dual-Band Outdoor WiFi Access Point for outdoor zones.
- A Cat6 Ethernet backhaul cable run from each access point location back to the central switch room — including UV-resistant outdoor Cat6 cable for any external runs
- The total number of simultaneous users and the upstream bandwidth required
Wired Cat6 Ethernet backhaul is essential for a professional hotspot installation — wireless repeaters and mesh systems cannot deliver the reliability and performance needed for a commercial venue. Connect each access point with a dedicated Cat6 cable run back to your central PoE switch. For managing the subscribers who connect through those access points, use our ISP Billing Systems.
Step 2: Choose Your Cabling — Indoor and Outdoor
Cable selection depends on where each run goes:
- Indoor ceiling-mounted APs: Cat6 indoor bulk cable run through ceiling voids or conduit to each access point location
- Outdoor APs (pool areas, verandas, rooftop): UV-resistant outdoor Cat6 cable — mandatory for any run exposed to Uganda's sun and rain
- Under-carpet or skirting board runs: Flat Cat6 cable — slim profile that sits flush without creating trip hazards
- Patch connections at the switch and AP: Pre-terminated Cat6 patch cables in appropriate lengths
Keep all runs under 100 metres for reliable Gigabit and PoE performance. NetEdge Supplies stocks all these cable types with delivery across Uganda. Pair your cabling investment with our ISP Billing Systems for end-to-end subscriber management.
Step 3: Select Your Router — MikroTik Is the Standard in Uganda
Your router runs the captive portal and controls all hotspot authentication. In Uganda, MikroTik is the dominant choice for hotspot deployments for good reason:
- RouterOS Hotspot Manager is built-in — no additional software licence required
- Supports voucher-based access, user/password authentication, and MAC address bypass
- Per-user bandwidth profiles with upload/download rate limits
- Session time limits and data quotas per user profile
- Detailed usage logs and active user monitoring
- Customisable captive portal login page with your venue's branding
For most hotel and campus hotspot deployments, the MikroTik hEX RB750Gr3 5-Port Gigabit Router is an excellent choice, while the MikroTik hAP RouterBOARD 5-Port WiFi Router with PoE combines routing and wireless in one unit for smaller venues. Connect your MikroTik router to your switching infrastructure using quality Cat6 patch cables. For billing automation beyond RouterOS — automated invoicing, payment tracking, and multi-site management — integrate with our ISP Billing Systems.

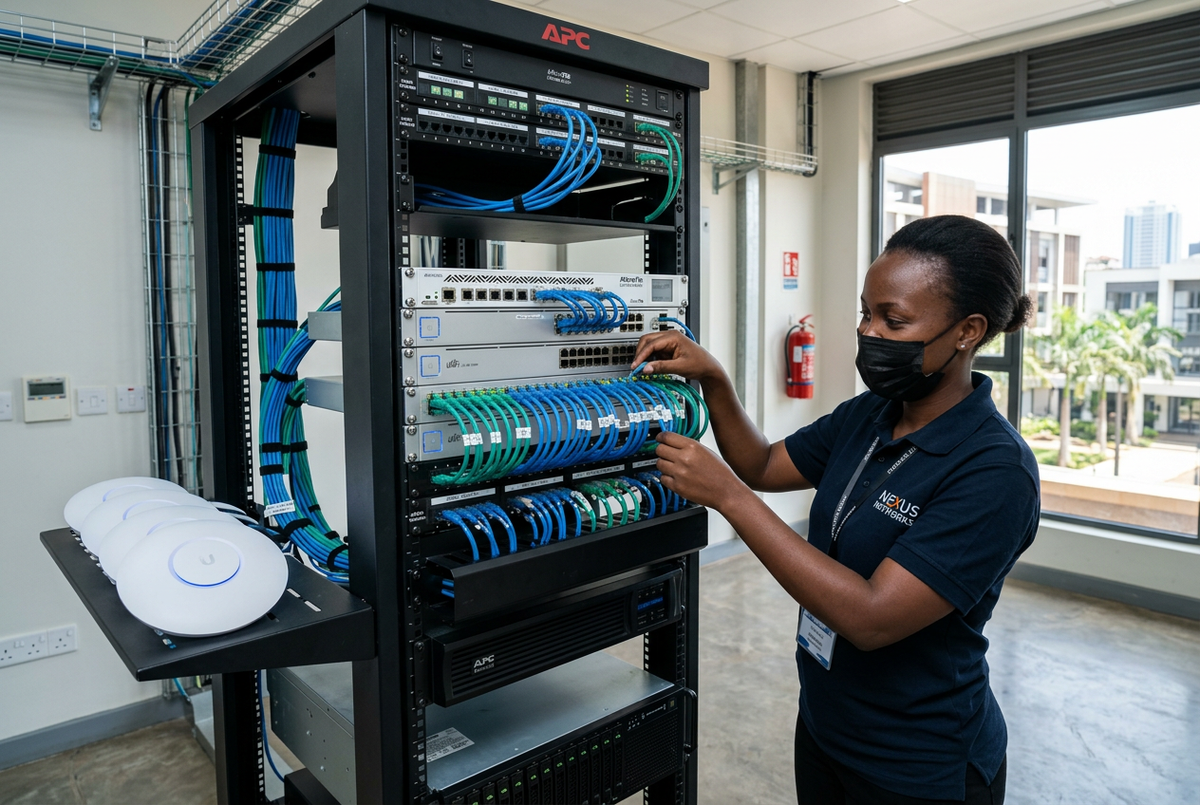

Step 4: Deploy a PoE Switch to Power Your Access Points
Most professional wireless access points are powered via PoE — they receive both data and power through the same Cat6 cable from a PoE switch. This is the correct approach for any commercial hotspot installation because:
- No separate power cable is needed at each access point — one Cat6 run per AP handles everything
- Centrally managed power — you can remotely reboot an AP by cycling its PoE port from the switch
- Cleaner installation — no power adapters in ceilings or on walls
- UPS-protected power for all APs from a single UPS on the switch — critical in Uganda where power outages would otherwise take your hotspot offline
If you don't have a PoE switch, the MikroTik RBGPOE Gigabit PoE Injector lets you power individual access points over your existing Cat6 runs without replacing your switch. Size your PoE switch for the number of access points plus spare capacity for growth. Connect all APs with Cat6 cables from NetEdge Supplies. Manage every hotspot subscriber with our ISP Billing Systems.
Step 5: Configure Your Hotspot Profiles and Vouchers
With hardware in place, configure your MikroTik hotspot for your specific venue. Typical profile setup for a Ugandan hotel or apartment block:
- Guest/Daily profile: 5Mbps download / 2Mbps upload, 24-hour session, unlimited data or 2GB quota — for short-stay hotel guests purchasing daily access
- Monthly resident profile: 10Mbps download / 5Mbps upload, 30-day session — for apartment tenants on monthly plans
- Conference/Event profile: 20Mbps+ download, short session time — for conference delegates needing fast temporary access
- Staff profile: Unrestricted or high-bandwidth — for hotel or venue staff
Generate voucher codes in batches for each profile. Front desk staff or automated payment kiosks issue vouchers to guests when they pay. For venues with many monthly subscribers, our ISP Billing Systems automates monthly invoicing, payment reminders, and subscriber account management far beyond what RouterOS alone can handle.
Step 6: Brand Your Captive Portal
Your captive portal is the first thing every guest sees when they connect to your Wi-Fi. MikroTik allows full customisation of the login page — upload your venue's logo, set brand colours, add contact information, and include terms of use. A branded captive portal looks professional and builds guest confidence in your Wi-Fi service.
For ISPs managing multiple venues, our ISP Billing Systems platform provides centralised subscriber management across all your hotspot sites — one dashboard for all venues, all subscribers, and all billing.
Step 7: Connect a UPS and Test Everything
Before going live, connect your router, PoE switch, and any servers or NAS to a UPS. Power outages in Uganda are frequent — without a UPS, every power cut takes your hotspot offline and disrupts every connected guest or tenant simultaneously. A UPS providing 15–30 minutes of runtime is sufficient for generator switchover at most venues.
Then test every access point, every user profile, and every voucher type before opening to guests. Walk the venue with a device and confirm coverage in every room and common area. Test bandwidth limits with a speed test tool. Confirm that expired sessions correctly redirect to the captive portal. Once everything tests clean, you are ready to go live. Manage your live subscriber base with our ISP Billing Systems.
Final Thoughts
A professional hotspot billing system — built on solid Cat6 wired backhaul, a MikroTik router, quality PoE access points, and a UPS — delivers reliable, manageable, revenue-generating Wi-Fi for any Ugandan hotel, apartment block, or campus. The investment in proper cabling and equipment pays for itself quickly in reduced support calls, happier guests, and sustainable Wi-Fi revenue.
Browse our complete range of Cat6 cables at NetEdge Supplies — indoor cables, outdoor UV-resistant cables, bulk reels, flat cables, and patch cables — for all your hotspot infrastructure needs across Uganda. And for full subscriber and billing management for your hotspot or ISP business, visit our ISP Billing Systems.
Frequently Asked Questions (FAQ)
Q: What is a hotspot billing system?
A: A hotspot billing system controls internet access through a captive portal — a login page where users authenticate with a voucher or credentials before accessing the internet. It tracks usage, enforces bandwidth limits, and cuts access when sessions expire. For multi-site management, visit our ISP Billing Systems.
Q: What equipment do I need for a hotspot billing system in Uganda?
A: A MikroTik router for the captive portal, wireless access points such as the MikroTik wAP ac Dual-Band Outdoor WiFi Access Point connected via Cat6 Ethernet backhaul, a PoE switch or PoE injector, Cat6 cabling throughout the venue, and a UPS. For billing automation, add our ISP Billing Systems.
Q: Can MikroTik run a hotspot billing system?
A: Yes — MikroTik RouterOS includes a built-in hotspot manager with captive portal, user profiles, bandwidth limits, and voucher generation. The MikroTik hAP RouterBOARD with PoE is a popular all-in-one option for smaller venues. Connect your MikroTik to access points via Cat6 cables and manage subscribers with our ISP Billing Systems.
Q: How do I limit bandwidth per user on a hotspot?
A: In MikroTik RouterOS, create user profiles with defined upload and download rate limits. Assign users to a profile at authentication. Use Cat6 wired backhaul for reliable AP connections and manage subscriber accounts with our ISP Billing Systems.
Q: What Cat6 cable do I need for a hotspot installation?
A: Indoor Cat6 cable for ceiling-mounted APs, outdoor UV-resistant Cat6 for external APs, and flat Cat6 for surface runs. All available at NetEdge Supplies. Visit our ISP Billing Systems for subscriber management.
Q: Where can I buy Cat6 cables for hotspot installations in Uganda?
A: NetEdge Supplies stocks indoor Cat6, outdoor UV-resistant Cat6, bulk reels, flat cables, and patch cables for hotspot Wi-Fi installations — delivered across Uganda and East Africa. Visit our ISP Billing Systems for complete ISP and hotspot billing management.
