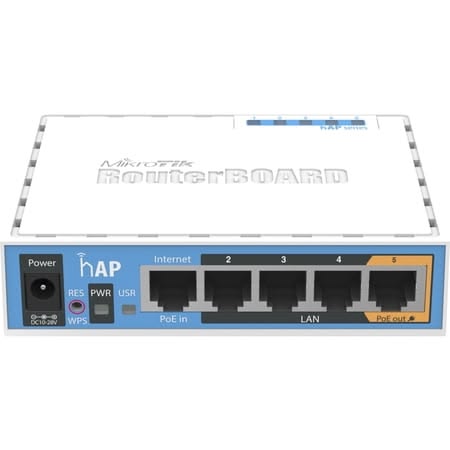

MikroTik hAP RouterBOARD 5-Port WiFi Router with PoE

MikroTik hAP RouterBOARD — 5-Port WiFi Router | PoE In & PoE Out | 2.4GHz | RouterOS Level 4

The MikroTik hAP RouterBOARD is a powerful, compact, and affordable 5-port wireless router that stands out from its siblings with a critical advantage: both PoE input and PoE output. This means the hAP can be powered over Ethernet from an upstream switch or injector (PoE in), while simultaneously powering a connected device such as an outdoor access point or IP camera from its dedicated PoE out port — all with no additional power adapters required at the installation point.

Running RouterOS Level 4 on a 650MHz QCA9531 CPU with 64MB RAM, the hAP delivers enterprise-grade routing, hotspot, VPN, and bandwidth management in a clean desktop form factor. Available at UGX 180,000 (regular price UGX 220,000), it’s an excellent choice for ISP CPE deployments, hotspot gateways, and small office networks across Uganda. Pair your hAP deployment with our ISP Billing System for automated subscriber management, invoicing, and bandwidth control across your entire network.

Key Features

• 5 × 10/100 Mbps Ethernet Ports: 1 × Internet/WAN (with PoE in), 3 × LAN, 1 × PoE out — for powering a connected downstream device
• PoE Input: Power the hAP itself over Ethernet from an upstream PoE switch or injector — no power socket needed at the installation point
• PoE Output (Port 5): Power a connected outdoor AP, IP camera, or MikroTik device directly from this port — no separate injector required
• Built-in 2.4GHz 802.11b/g/n WiFi: Reliable wireless coverage for subscriber premises and hotspot locations
• RouterOS Level 4: Full routing, hotspot server, firewall, QoS queue trees, VPN (PPTP, L2TP, IPsec), VLAN, and bandwidth management
• 650MHz QCA9531 CPU / 64MB RAM: Handles NAT, hotspot authentication, firewall, and basic VPN without performance degradation
• WPS Button: Fast and easy wireless device pairing for subscriber premises deployments
• LED Status Indicators: Real-time visual monitoring of power, wireless, and port status
• Compact Desktop Design: 10–28V DC or PoE in power — flexible deployment anywhere
• Low Power Consumption: Efficient for 24/7 ISP CPE and hotspot operation

The PoE In + PoE Out Advantage for ISP Deployments

What sets the MikroTik hAP apart from the hAP lite is its dual PoE capability. In a typical ISP CPE installation scenario:

• The hAP is powered via PoE in from a PoE switch or the MikroTik RBGPOE PoE Injector — no power socket needed at the subscriber’s installation point
• Simultaneously, the hAP outputs PoE on port 5 to power a small outdoor access point or IP camera mounted on the exterior of the building
• This creates a clean, two-device chain — injector → hAP (indoor) → outdoor AP — powered by a single Ethernet cable run from the distribution point

This PoE chain capability makes the hAP one of the most practical and cost-effective CPE routers for ISP last-mile deployments across Uganda and East Africa.

Ideal Use Cases

• ISP subscriber CPE — All-in-one indoor WiFi router that also powers a small outdoor access point via PoE out
• WiFi hotspot gateway — RouterOS Hotspot server for voucher-based or subscription WiFi billing at hotels, shops, and campuses
• PPPoE client/server — Manage subscriber broadband sessions with PPPoE termination
• Bandwidth management — Per-subscriber speed control via RouterOS queue trees
• Small office all-in-one — Router, firewall, WiFi, and PoE out in one compact device
• IP camera power node — Use PoE out port 5 to power a PoE IP camera without a separate injector

Great for ISPs & Hotspot Operators

The MikroTik hAP is a popular choice for ISPs deploying customer-premises equipment (CPE) and hotspot access points across Uganda. Take your WiFi business further by pairing it with our ISP Billing System for automated subscriber management and invoicing — or use these trusted billing and registration platforms:

• Xenfi — A billing platform purpose-built for internet service providers — eliminate manual invoicing, automate renewals, and keep your subscribers connected and paying on time
• Sopra Enterprise — Register your ISP or WiFi business quickly and easily through a business registration platform that helps entrepreneurs in Uganda get legally set up and ready to grow

Build Your Complete MikroTik ISP Network

• MikroTik hEX RB750Gr3 5-Port Gigabit Router — Use as the upstream Gigabit edge router feeding multiple hAP CPE units
• MikroTik RB951Ui-2HnD RouterBOARD — Alternative CPE with more RAM (128MB) and USB modem failover support
• MikroTik hAP lite Wireless Router — Budget alternative CPE for lower-traffic subscriber premises
• MikroTik RBGPOE Gigabit PoE Injector Adapter — Power this hAP remotely over Cat6 cable from your distribution point
• MikroTik QuickMOUNT PRO Wall & Pole Mount Bracket — Professional wall mounting for the hAP in subscriber premises
• Cat6 Ethernet Cable — 1000Mbps SFTP Shielded — Patch cables for the hAP’s LAN and PoE connections

Technical Specifications

• Model: MikroTik hAP (RB951Ui-2nD or similar)
• CPU: QCA9531, 650MHz single-core
• RAM: 64MB DDR2
• Storage: 16MB NAND flash
• Wireless: 802.11b/g/n, 2.4GHz
• Ethernet Ports: 5 × 10/100 Mbps (1 WAN/PoE in, 3 LAN, 1 PoE out)
• PoE Input: Yes — on WAN port
• PoE Output: Yes — on port 5 (passive, 10–28V)
• Power Input: DC 10–28V or PoE in
• RouterOS License: Level 4
• WPS Button: Yes
• Operating Temperature: −20°C to +70°C

Why Choose NetEdge Supplies?

NetEdge Supplies is a trusted supplier of genuine MikroTik networking equipment in Uganda. We serve ISPs, businesses, and home users with quality hardware, expert recommendations, and reliable after-sales support. Order with confidence and get delivery across Kampala and East Africa.
