Walk into any IT shop in Kampala and you'll find Cat5e, Cat6, and sometimes Cat6A cables all sitting side by side. For a home user, the difference may not matter much. But for an ISP, network engineer, or hotspot operator building infrastructure that needs to run reliably for years, choosing the wrong cable category is a costly mistake — either overspending on overkill cable or underspending on cable that bottlenecks your network before it's even fully deployed.
This guide breaks down the real differences between Cat5e, Cat6, and Cat6A — and maps each cable type to the specific deployment scenarios most relevant to ISPs and enterprise networks across Uganda and East Africa. To understand how ISPs automate billing and subscriber management on top of this infrastructure, read our guide on How ISP Billing Systems Work. ISPs managing subscriber networks can also streamline their billing and bandwidth management with our ISP Billing System — purpose-built for East African internet service providers.

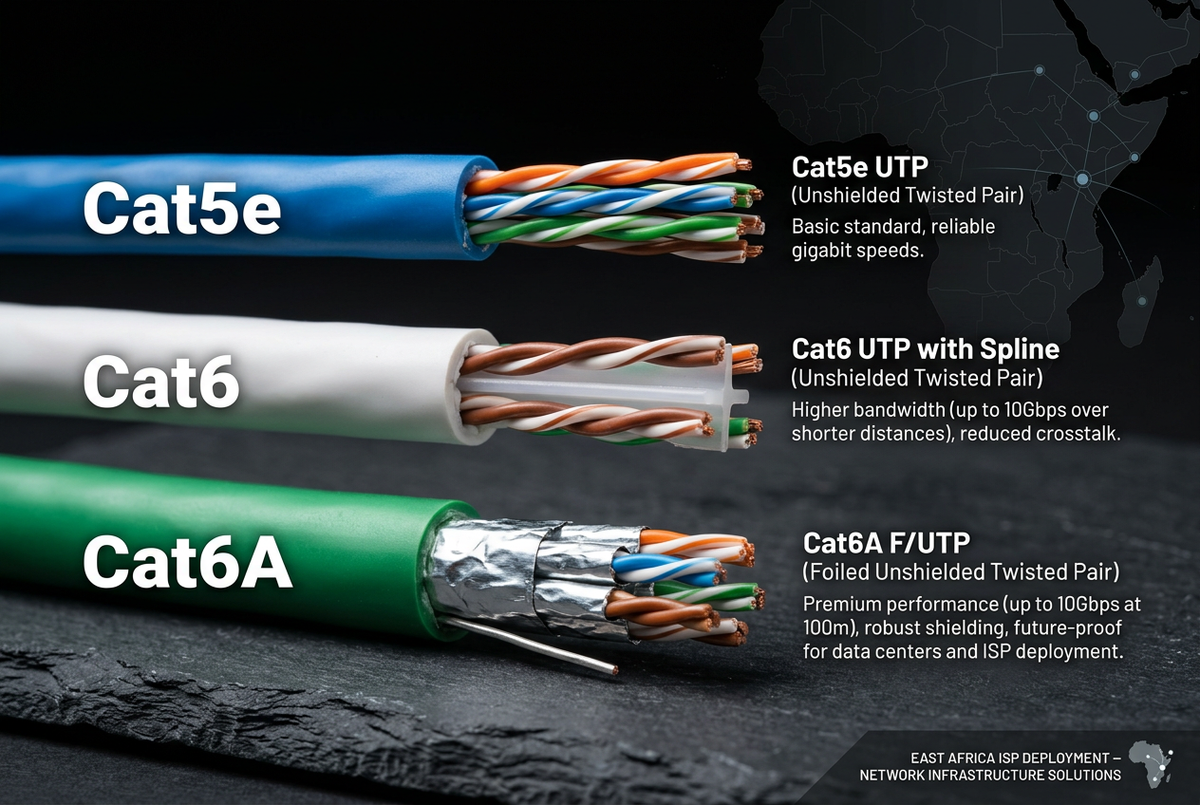

Quick Comparison: Cat5e vs Cat6 vs Cat6A
| Specification | Cat5e | Cat6 | Cat6A |
|---|---|---|---|
| Max Speed | 1 Gbps | 1 Gbps (10 Gbps <55m) | 10 Gbps up to 100m |
| Bandwidth | 100 MHz | 250 MHz (550 MHz enhanced) | 500 MHz |
| Max Distance | 100m @ 1 Gbps | 100m @ 1 Gbps / 55m @ 10 Gbps | 100m @ 10 Gbps |
| Shielding | Usually UTP | UTP or STP/FTP | Usually F/UTP or U/FTP |
| Cable Diameter | Slim | Medium | Thick (harder to terminate) |
| Typical Cost | Lowest | Moderate | Highest |
| Best For | Legacy upgrades, short patch runs | ISP CPE, office LAN, structured cabling | Server rooms, 10GbE data centres |
Cat5e — The Legacy Standard
Cat5e (Category 5 Enhanced) was the dominant network cable standard throughout the 2000s and early 2010s. It supports 1 Gbps at up to 100 metres and operates at 100 MHz bandwidth. The "e" stands for "enhanced" — it has tighter twist specifications than original Cat5 to reduce crosstalk.
Where Cat5e still makes sense in Uganda:
- Replacing existing Cat5e infrastructure where re-cabling is impractical and 1 Gbps is sufficient
- Very short patch runs (<10m) where future upgrade to 10GbE is not planned
- Extremely budget-constrained projects where Cat6 cost is a genuine barrier
Where Cat5e falls short:
- Does not support 10 Gbps at any distance — a significant limitation for future-proofing ISP infrastructure
- Higher crosstalk compared to Cat6, which can cause issues in high-density patch environments
- For any new installation in Uganda today, Cat6 is the recommended minimum standard
Cat6 — The Current Professional Standard for ISPs in Uganda
Cat6 (Category 6) is the right choice for the vast majority of ISP, enterprise, and structured cabling deployments being built today across Uganda and East Africa. It supports 1 Gbps at 100 metres and 10 Gbps at distances up to 55 metres, operating at 250 MHz bandwidth (or 550 MHz for enhanced Cat6 variants).
NetEdge Supplies stocks a full range of Cat6 cables for every ISP and enterprise deployment scenario:
- ISP last-mile indoor/outdoor drops: Dutevolns Cat6 Indoor/Outdoor UTP 24AWG ETL-Verified Cable — dual indoor/outdoor rating and ETL certification make this the professional choice for subscriber premises drops where the cable transitions from outside to inside. Available at UGX 42,000.
- ISP NOC and server room patching: Cat6 Shielded 10Gbps ETL+UL Certified Cable — STP/FTP shielded, 550 MHz, gold-plated snagless RJ45, UL Listed and ETL Verified for high-EMI NOC and server room environments. UGX 48,000.
- Rack and patch panel management: Vention Cat6 Multi-Colour Patch Cables — colour-coded for organised, easy-to-trace patch panel and rack cable management.
- Large-scale ISP structured cabling projects: Cmple Cat6 Bulk Network Cable — 1000ft 23AWG 550MHz — professional 23AWG 550 MHz bulk reel for pulling through conduit across subscriber premises, PoP sites, and ISP distribution points.
- Clean indoor surface and under-carpet runs: Cat6 Flat Ethernet Cable (White) — ultra-slim flat profile for discreet wall-edge and under-carpet routing in hotel rooms and offices. See how this cable is used in hotspot deployments in our guide on Setting Up a Hotspot Billing System for Hotels & Campuses in Uganda. UGX 38,000.
- NOC and critical link identification: Axiom Cat6 Patch Cable 25ft 550MHz Red — premium 550 MHz red patch cable for colour-coded NOC critical link identification.
- Extended outdoor ISP runs: Cat6 Outdoor Ethernet Cable — 250ft UV-Resistant CCA — UV-resistant outdoor-rated 250ft reel for extended last-mile and building-to-building runs.
Why Cat6 is the right standard for new ISP deployments in Uganda today:
- Full 1 Gbps at 100m — covers every standard subscriber premises and distribution point run
- 10 Gbps capability at <55m — future-proofs short server-to-switch runs without upgrading to Cat6A cost
- 250–550 MHz bandwidth — significant headroom over Cat5e in high-density patch environments
- Available in shielded (STP/FTP) variants for EMI-heavy NOC environments
- Widely available at NetEdge Supplies across all format types — bulk reel, flat, round, indoor/outdoor, shielded
- Cost-effective: typically only marginally more than Cat5e for new installations, with far better future-proofing
Cat6A — When You Actually Need It
Cat6A (Category 6 Augmented) is the premium standard that supports a true 10 Gbps at the full 100 metre distance, operating at 500 MHz bandwidth. It achieves this through tighter construction specifications, additional shielding, and a significantly thicker and stiffer cable jacket — which makes it considerably harder to pull through conduit, terminate into RJ45 connectors, and manage in dense patch environments compared to Cat6.
Cat6A is the right choice when:
- You need 10 Gbps over distances greater than 55 metres — the only scenario where Cat6A's performance advantage over Cat6 is technically required
- You are building a dedicated 10GbE server room or data centre backbone where full 10GbE performance across all runs (not just short ones) is required
- Your network standard specifies Cat6A — common in government, banking, and enterprise tenders in Uganda that reference TIA-568-C.2 or ISO/IEC 11801 standards
- You are building infrastructure intended to last 15+ years and want maximum future-proofing headroom
When Cat6A is overkill for ISP deployments in Uganda:
- Standard subscriber CPE connections — Cat6 at 1 Gbps is more than sufficient for residential and SOHO subscribers
- Hotspot and distribution point patch runs — typically well under 55 metres, meaning Cat6 delivers 10 Gbps capability anyway. For a full hotspot deployment guide, see MikroTik Hotspot Setup for African Hotels, Schools & Campuses.
- ISP last-mile drops — Cat6 indoor/outdoor cable handles these runs at full Gigabit performance
- Any deployment where 1 Gbps is the current maximum speed on the link — Cat6 already exceeds the requirement
Shielded vs Unshielded — UTP, STP, FTP Explained
Beyond the cable category, shielding is a critical decision for ISP deployments in Uganda:
- UTP (Unshielded Twisted Pair): Standard construction — no metallic shielding around the conductors or pairs. Sufficient for office, home, and most ISP subscriber premises environments where EMI sources are limited. The Dutevolns Cat6 24AWG UTP is a good example — ETL-verified UTP for professional ISP installations.
- STP/FTP (Shielded Twisted Pair / Foiled Twisted Pair): A metallic foil or braid shield around the cable core reduces electromagnetic interference. Recommended for NOC environments, generator rooms, near UPS systems, or anywhere power and data cables share cable trays. The Cat6 Shielded 10Gbps cable is the right choice for these environments.
For the majority of ISP subscriber premises deployments in Uganda, UTP Cat6 is the correct and cost-effective choice. Reserve shielded cable for NOC infrastructure, generator rooms, and high-EMI environments.
Solid Copper vs Copper-Clad Aluminium (CCA) — Know the Difference
This is one of the most important and least-discussed decisions when buying ethernet cable in Uganda. Many cables sold at low prices use Copper-Clad Aluminium (CCA) conductors — a cheaper aluminium core with a thin copper coating. CCA cables have:
- Higher resistance than pure copper — causing signal degradation over longer runs
- Poor PoE performance — aluminium carries current less efficiently, causing voltage drop that can cause PoE devices to malfunction or not power at all
- Lower tensile strength — CCA cables kink and break more easily during installation in conduit
- Non-compliance with TIA/EIA Cat6 standards — CCA is not permitted in genuine Cat6 specifications
For ISP deployments where PoE is used to power access points, IP cameras, and CPE devices, always use solid copper Cat6 cable. ETL-certified cables like the Dutevolns Cat6 ETL-Verified provide documented assurance of genuine Cat6 compliance — including pure copper conductors.
Cable Selection Guide by Deployment Scenario
- ISP subscriber premises drop (indoor/outdoor transition): Dutevolns Cat6 Indoor/Outdoor 24AWG UTP ETL-Verified
- Long outdoor runs between buildings or PoP sites: Cat6 Outdoor 250ft UV-Resistant Reel
- ISP NOC / server room patch runs with EMI: Cat6 Shielded 10Gbps UL+ETL Certified
- Bulk ISP structured cabling project: Cmple Cat6 1000ft 23AWG 550MHz Bulk Reel
- Hotel / office clean surface runs: Cat6 Flat White Patch Cable — see our MikroTik Hotspot Setup Guide for Hotels & Campuses for full deployment context.
- Rack and patch panel management: Vention Cat6 Multi-Colour Patch Cables
- NOC critical link identification: Axiom Cat6 25ft 550MHz Red Patch Cable
ISPs deploying structured cabling across subscriber premises can manage their entire subscriber base, automate billing, and control bandwidth plans from a single platform. Read how leading East African ISPs do this in our guide on Xenfi ISP Billing for East Africa, and how to scale from 100 to 1,000 subscribers in How to Scale Your African ISP Using Xenfi & MikroTik. For the full billing platform, visit our ISP Billing System.
Frequently Asked Questions (FAQ)
Is Cat6 worth the extra cost over Cat5e for ISP networks in Uganda?
Yes, almost universally. For new ISP infrastructure being built today in Uganda, Cat6 is the recommended minimum standard. The price difference between Cat5e and Cat6 for new installations is typically marginal — but Cat6 delivers double the bandwidth (250 MHz vs 100 MHz), significantly lower crosstalk in dense patch environments, and 10 Gbps capability for short runs. This future-proofing is valuable as ISP subscriber speeds increase year-on-year. The Cmple Cat6 1000ft bulk reel is the most cost-effective option for large-scale ISP cabling projects at NetEdge Supplies Uganda.
Can Cat6 cable support 10 Gbps in Uganda?
Yes, but with a distance limitation. Cat6 supports 10 Gbps (10GBASE-T / IEEE 802.3an) over distances up to 55 metres. For runs up to 100 metres, Cat6 supports 1 Gbps. This makes Cat6 fully capable of 10 Gbps for the majority of ISP NOC server-to-switch and switch-to-patch-panel runs, which are typically well under 55 metres. For full 10 Gbps over 100-metre runs, Cat6A is required. The Cat6 Shielded 10Gbps cable at NetEdge Supplies is rated for exactly these short-run 10GbE applications.
What is the best ethernet cable for outdoor ISP last-mile runs in Uganda?
For standard outdoor ISP last-mile subscriber drops transitioning from outside to inside the premises, the Dutevolns Cat6 Indoor/Outdoor UTP 24AWG ETL-Verified is the recommended choice — its dual indoor/outdoor rating means a single cable handles the full run without switching types at the building entry point. For longer building-to-building or PoP outdoor runs, use the Cat6 Outdoor 250ft UV-Resistant Reel. Both are available at NetEdge Supplies Uganda.
Does PoE work better with Cat6 than Cat5e?
Yes. Cat6 cables with 23AWG or 24AWG solid copper conductors carry PoE current more efficiently than Cat5e (typically 24AWG) — lower resistance means less voltage drop over longer PoE runs, which is critical for reliably powering outdoor access points, IP cameras, and ISP CPE devices at the far end of a 50–90 metre cable run. For PoE-heavy ISP deployments, always use solid copper Cat6 with at minimum 24AWG conductors. The Dutevolns Cat6 24AWG ETL-Verified is the recommended choice for PoE ISP runs at NetEdge Supplies.
How do I choose between shielded and unshielded Cat6 for my ISP network?
Use UTP (unshielded) Cat6 for subscriber premises drops, hotspot locations, and general office LAN runs where EMI sources are limited — it is easier to terminate, more flexible, and more cost-effective. Use shielded Cat6 (STP/FTP) for ISP NOC environments, server rooms, generator rooms, or anywhere data cables share cable trays with power cables, UPS systems, or fluorescent lighting ballasts. The Cat6 Shielded 10Gbps UL+ETL Certified cable is the recommended shielded option at NetEdge Supplies for ISP NOC and high-EMI installations. Manage your ISP subscriber network with our ISP Billing System.
What AWG gauge should I choose for Cat6 ISP cabling in Uganda?
For ISP structured cabling and bulk runs, choose 23AWG Cat6 — the thicker conductors provide lower resistance, better PoE performance, and better signal integrity over longer runs. The Cmple Cat6 1000ft 23AWG 550MHz bulk reel is specifically designed for professional ISP structured cabling with 23AWG conductors. For patch cables and short runs, 24AWG Cat6 such as the Dutevolns Cat6 24AWG ETL-Verified is the professional standard. Avoid 26AWG or thinner for any ISP PoE applications.
