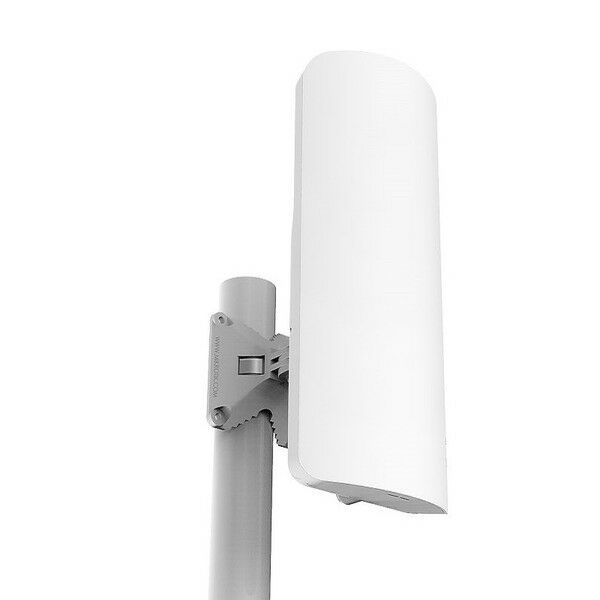

MikroTik MANTBox 12s 2.4GHz Dual-Polarisation Sector Integrated Antenna (RB911G-2HPnD-12S)

The MikroTik MANTBox 12s (RB911G-2HPnD-12S) is an all-in-one 2.4GHz dual-polarisation sector integrated antenna with a built-in RouterOS wireless radio. Designed for ISPs and WISPs across Uganda, Kenya, Tanzania, Rwanda, and East Africa, the MANTBox 12s combines a high-gain sector antenna and a powerful 802.11b/g/n radio into a single weatherproof unit — simplifying deployment and eliminating the need for a separate radio and pigtail cables.

With its 12dBi gain and dual-polarisation design, the MANTBox 12s is the go-to sector AP for ISPs building out subscriber-facing point-to-multipoint networks at 2.4GHz — especially in areas where 5GHz penetration is limited or where longer-range 2.4GHz coverage is needed for rural and peri-urban deployments.

Key Specifications

• Model: RB911G-2HPnD-12S
• Frequency: 2.4GHz (2312–2732 MHz)
• Antenna Gain: 12dBi
• Antenna Type: Dual-polarisation sector (integrated)
• Beamwidth: 90° horizontal, 15° vertical
• Radio Standard: 802.11b/g/n, 2x2 MIMO
• Wireless Chipset: Atheros AR9342 (2x2 MIMO)
• Output Power: Up to 30dBm (1W) per chain
• CPU: Atheros AR9342 600MHz
• RAM: 64MB DDR2
• Storage: 16MB flash
• Ethernet: 1x Gigabit PoE-in port (802.3af/at)
• OS: MikroTik RouterOS (Level 3 licence included)
• Mounting: Pole mount with QuickMOUNT bracket (included)
• Enclosure: IP54-rated outdoor weatherproof

Why the MANTBox 12s for East African WISP Networks?

The MANTBox 12s is built for the realities of ISP deployment in East and West Africa:

• All-in-one simplicity: No separate radio, no pigtail cables, no weatherproofing of connectors — one unit replaces what would otherwise be three separate components.
• 2.4GHz reach: 2.4GHz penetrates light foliage and provides longer range than 5GHz in rural environments — critical for Uganda, Kenya, and Tanzania deployments covering mixed terrain.
• 90° sector coverage: Four MANTBox 12s units per tower gives you full 360° omni-equivalent coverage with the gain, interference rejection, and capacity of directional sector antennas.
• RouterOS full feature set: Runs MikroTik RouterOS with full RADIUS, DHCP, firewall, queue, and API support — integrating directly with your ISP billing system via the RouterOS API.
• PoE-powered: Single Ethernet cable for power and data — clean tower installations with no separate power runs to the antenna.

Recommended Companion Products

• MikroTik hEX S RB760iGS — Core distribution router with SFP fibre uplink and PoE out to power MANTBox units
• MikroTik hEX RB750Gr3 — Zone aggregation router at the tower base for subscriber traffic
• MikroTik hAP lite RB941-2nD — Entry-level 2.4GHz CPE for subscriber premises on MANTBox 12s coverage zones
• MikroTik hAP RouterBOARD with PoE — Premium subscriber CPE with 5-port gigabit and PoE
• MikroTik RouterBOARD Wireless Router — Outdoor wireless for backhaul and point-to-point distribution links
• MikroTik mAP 2nD Wireless Access Point — Compact indoor AP for subscriber premises indoor coverage extension

ISP Billing Integration

The MANTBox 12s runs full MikroTik RouterOS, meaning it integrates natively with our ISP billing system via the RouterOS API. Automate subscriber bandwidth control, service suspension on non-payment, instant reactivation after mobile money payment, and real-time reporting — all managed centrally from your billing dashboard without touching the router in the field.
