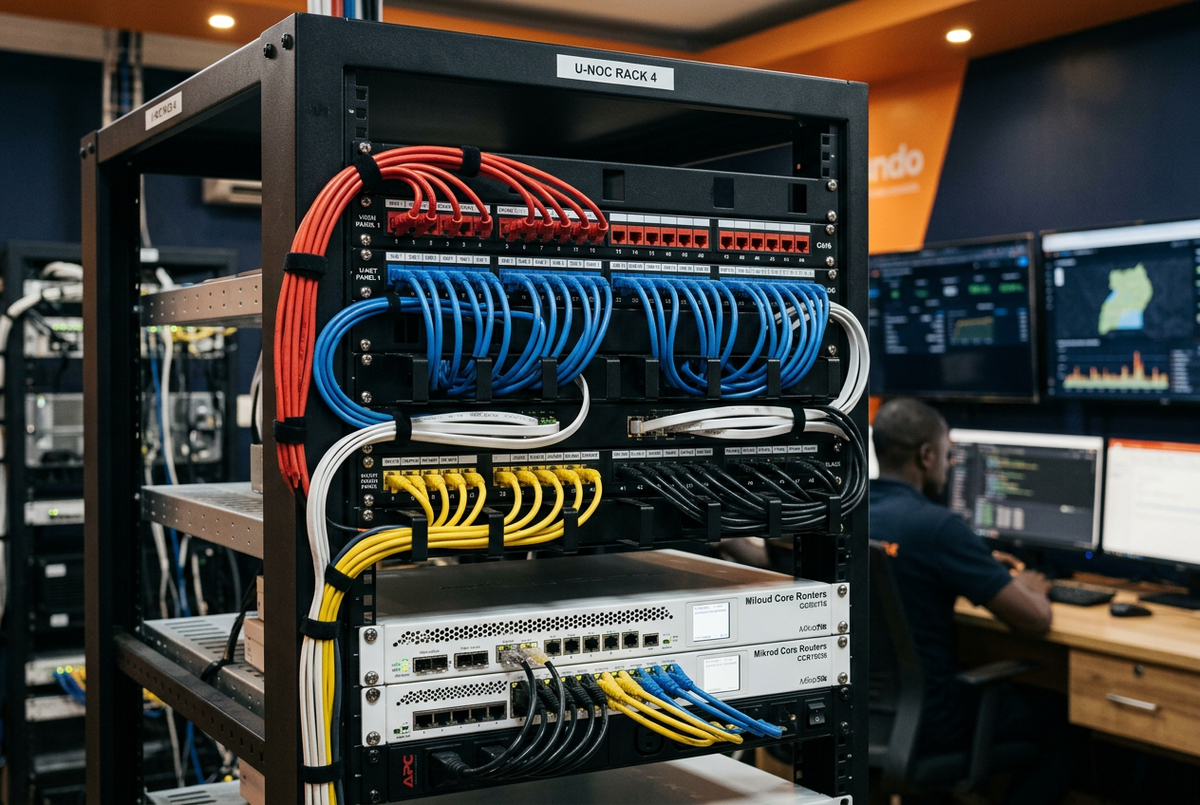

How to Colour-Code Your ISP Patch Panel — A Practical Guide for Uganda Networks

A disorganised patch panel is one of the most common — and most costly — problems in ISP and enterprise networks across Uganda. When every port looks the same, a rushed technician pulls the wrong cable, takes down 30 subscribers, and spends the next two hours tracing the fault. A properly colour-coded patch panel eliminates that entire class of problem. It makes fault isolation faster, changes safer, and handover to new technical staff dramatically easier.

This guide covers practical patch panel colour-coding standards used by professional ISP network operations centres (NOCs) across Uganda and East Africa — and maps each colour to the specific Cat6 patch cables available at NetEdge Supplies to help you implement a clean, auditable, and professional network rack. ISPs managing subscriber networks can also streamline billing and bandwidth management with Xenfi ISP Billing — purpose-built for East African internet service providers.

Why Colour-Coding Your Patch Panel Matters for ISPs in Uganda

Beyond aesthetics, colour-coding serves concrete operational functions in an ISP network:

• Faster fault isolation: A technician can immediately identify that the red port is a critical uplink, not a standard subscriber port — reducing mean time to repair (MTTR)
• Safer changes: Colour makes it immediately obvious when a patch cable is connected to the wrong port type — preventing accidental misrouting during adds, moves, and changes
• Easier handover: New technical staff can read the rack visually without needing to trace every cable or memorise a verbal convention
• Audit readiness: Corporate clients, government procurement officers, and UCC compliance inspectors expect to see a professionally documented and organised network room
• Scalability: As your ISP grows from 50 to 500 subscribers, a colour-coded patch panel scales without rework — new ports follow the same convention automatically

The TIA-606-B Colour Convention — The Professional Starting Point

The TIA-606-B Administration Standard is the international reference for structured cabling administration and labelling. While you don't need to implement it verbatim, it provides the most widely understood colour assignment framework — which is particularly important if your ISP works with equipment vendors, auditors, or international enterprise clients who expect documented standards compliance.

The TIA-606-B colour assignments most relevant to ISP NOC patch panels are:

• Blue: Horizontal cabling — subscriber and user data ports (the most common port type in an ISP rack)
• Red: Critical links, backbone uplinks, WAN connections, and emergency circuits — do not touch without authorisation
• Yellow: Auxiliary circuits, security systems, alarms, and out-of-band management
• Green: Network connections from a central office or service provider — external handoff points
• Orange: Demarcation points — the boundary between your network and an upstream provider
• White: First-level backbone cabling between equipment rooms in the same building
• Grey: Second-level backbone or inter-building connections
• Purple: Common equipment, network management, and SNMP/monitoring connections

A Practical ISP Colour Scheme for Uganda Networks

Most ISPs in Uganda operate with a simplified colour convention that maps to their actual network topology. Here is a practical and widely-used scheme adapted for typical Ugandan ISP rack environments:

Recommended Cat6 Patch Cables for Each Colour Zone

NetEdge Supplies stocks Cat6 patch cables across multiple colour variants to implement this scheme directly. Here's how to map your stock to each rack zone:

🔴 Red — Critical Uplinks & WAN Connections

Use the Axiom Cat6 Patch Cable — 25ft 550MHz Moulded Boot (Red) for WAN uplinks, backbone connections, and any port that must not be accidentally disconnected. The Axiom's premium 550MHz specification and moulded snagless boot make it the right cable for the most critical links in your rack.

🔵 Blue / Multi-Colour — Subscriber & Data Ports

For the highest-volume zone in your rack — subscriber data ports and standard LAN connections — use the Vention Cat6 Patch Cable — 1000Mbps Multi-Colour. Available in multiple colours in one pack, Vention cables give you the flexibility to implement blue for subscribers, yellow for management, green for handoff, and orange for VoIP — all from a single cable range.

⚫ Black — NOC Server & Infrastructure Links

Use the Cat6 Shielded 10Gbps Gold-Plated Snagless (Black) for server-to-switch, RADIUS server, billing server, and NOC workstation connections. The shielded construction provides EMI protection in the dense cable environment of a server room or NOC rack, and the 10Gbps rating future-proofs your critical infrastructure links.

⚪ White — Indoor Subscriber Premises & Surface Runs

For clean indoor subscriber premises drops and hotel room or office surface runs, use the Cat6 Flat Ethernet Cable — Gigabit White. The ultra-slim flat profile routes invisibly along wall edges and under carpets — a white cable against a white wall is essentially invisible, making it the professional standard for clean subscriber premises installations.

🟠 Outdoor / Last-Mile Drops

For ISP last-mile subscriber drops transitioning from outside to inside the premises, use the Dutevolns Cat6 Indoor/Outdoor UTP 24AWG ETL-Verified (Black). For large-scale ISP last-mile cabling projects, use the Cmple Cat6 Bulk 1000ft 23AWG 550MHz Reel pulled through conduit.

Port Labelling — The Other Half of Good Patch Panel Management

Colour-coding without labelling is only half the solution. Professional ISP patch panels combine colour with a clear labelling convention. Here is a practical labelling format used by Ugandan ISPs:

• Subscriber ports: SUB-[Location]-[Port#] e.g. SUB-KLA-001 for subscriber 1 in Kampala
• WAN/uplink ports: WAN-[Provider]-[Circuit#] e.g. WAN-MTN-001
• Management ports: MGMT-[Device]-[Port#] e.g. MGMT-RB951-001
• Server ports: SRV-[Function]-[Port#] e.g. SRV-RADIUS-001 or SRV-BILLING-001
• Handoff/DMZ ports: DMZ-[Provider]-[Port#]

Print labels using a label maker and apply them to both ends of every patch cable — not just the panel. A cable with labels at both ends can be traced without following it physically through the rack.

Terminating Your Colour-Coded Rack into Switches

The patch panel connects to your switching infrastructure. For ISP distribution and subscriber aggregation, use the D-Link DGS-105 5-Port Gigabit Switch for small PoP and distribution point environments. Connect your MikroTik hEX RB750Gr3 5-Port Gigabit Router as the routing layer upstream of the switch, and your MikroTik RB951Ui-2HnD CPE routers as subscriber-facing devices at premises level.

For PoE-powered CPE and outdoor access points, use the MikroTik RBGPOE Gigabit PoE Injector Adapter to inject power into the Cat6 run at the distribution point, eliminating the need for local power at the subscriber premises.

Once your physical network is organised and colour-coded, manage your subscriber base efficiently with Xenfi ISP Billing — automate subscriber invoicing, manage bandwidth plans, and monitor usage across all your PoP sites from a single dashboard.

Common Colour-Coding Mistakes ISPs in Uganda Make

• No written convention document: If the colour scheme exists only in one technician's head, it disappears when they leave. Document it and keep a copy in the rack room.
• Mixing cable categories: Using Cat5e for some zones and Cat6 for others creates confusion. Standardise on Cat6 across the entire rack for consistency and performance.
• Unlabelled cables: Colour without labels means you still can't identify individual subscriber ports without tracing cables. Always label both ends.
• Inconsistent application: Starting with a colour scheme and abandoning it mid-rack as stock runs out. Order sufficient stock upfront — the Vention Multi-Colour Cat6 pack covers multiple colours in one purchase to prevent this.
• No spare ports: A full patch panel with no empty ports cannot grow without rework. Plan for 20–30% spare capacity in every panel.
